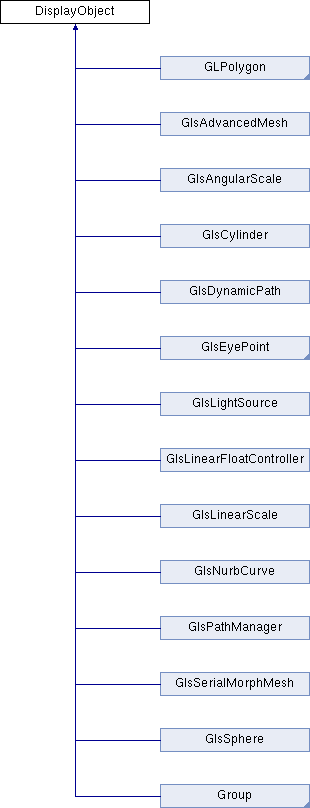

Inheritance diagram for DisplayObject:

Public Types
enum	MemberAccess_e { PUBLIC , PRIVATE , PROTECTED }

enum	PickableType_e { UNPICKABLE , FIRST_PICK , BEST_PICK , ALWAYS_PICK }

enum	PolygonClose_e { POLY_OPEN , POLY_CLOSED }

enum	PolygonMode_e { POLY_MODE_UNDEFINED , POLY_MODE_POINTS , POLY_MODE_OUTLINE , POLY_MODE_FILLED , POLY_MODE_FILL_AND_OUTLINE }

enum	ShadingType_e { SHADING_FLAT , SHADING_GOURAUD }

enum	TextureMap_e { TEXTURE_MAP_MODULATE , TEXTURE_MAP_DECAL , TEXTURE_MAP_BLEND , TEXTURE_MAP_REPLACE }

enum	TextureFilter_e { TEXTURE_FILTER_NEAREST , TEXTURE_FILTER_LINEAR , TEXTURE_FILTER_NEAREST_MIPMAP_NEAREST , TEXTURE_FILTER_LINEAR_MIPMAP_LINEAR , TEXTURE_FILTER_NEAREST_MIPMAP_LINEAR , TEXTURE_FILTER_LINEAR_MIPMAP_NEAREST }

enum	TessellateType_e { TESSELLATE_UNION , TESSELLATE_INTERSECT , TESSELLATE_DIFFERENCE }

enum	RotationAxis_e { X_AXIS , Y_AXIS , Z_AXIS }

enum	LineStyle_e { SOLID_LINE_STYLE , SMALL_DOTTED_LINE_STYLE , DOTTED_LINE_STYLE , DASHED_LINE_STYLE , DOT_DASHED_LINE_STYLE , SMALL_DASHED_LINE_STYLE }

enum	AlphaMode_e { ALPHA_MODE_UNDEFINED , ALPHA_MODE_OPAQUE , ALPHA_MODE_2_LEVEL , ALPHA_MODE_256_LEVEL }

Public Member Functions
bool	isNULL ()

str	GetName ()

str	SetName (str name)

None	SetProtectionMode (DisplayObject::MemberAccess_e mode)

DisplayObject::MemberAccess_e	GetProtectionMode (None)

None	SetLocked (bool val)

bool	GetLocked (None)

bool	GetGenerateMemberVariable ()

None	SetGenerateMemberVariable (bool b)

bool	GetAntiAliasing ()

None	SetAntiAliasing (bool antiAliasing)

bool	GetBlinking ()

None	SetBlinking (bool blinking)

float	GetBlinkRate ()

None	SetBlinkRate (float rate)

int	GetAlphaMode ()

None	SetAlphaMode (int mode)

bool	GetCullBackFaces ()

None	SetCullBackFaces (bool cullFaces)

bool	GetZBufferTestedFlag ()

None	SetZBufferTestedFlag (bool tested)

bool	GetAffectZBufferFlag ()

None	SetAffectZBufferFlag (bool affect)

bool	GetLightingEnabledFlag ()

None	SetLightingEnabledFlag (bool enabled)

DisplayObject::PickableType_e	GetPickMode ()

None	SetPickMode (DisplayObject::PickableType_e mode)

bool	GetVisibilityFlag ()

None	SetVisibilityFlag (bool visible)

PolygonClose_e	GetClosePolygonFlag ()

None	SetClosePolygonFlag (PolygonClose_e closePolygon)

PolygonMode_e	GetPolygonMode ()

None	SetPolygonMode (PolygonMode_e polygonMode)

ShadingType_e	GetShadingMode ()

None	SetShadingMode (ShadingType_e shadingMode)

Vertex	GetLocation ()

None	SetLocation (Vertex loc)

Vertex	GetRotationPoint ()

None	SetRotationPoint (Vertex rotPoint)

GlsMatrixAffine *	GetDcsMatrix ()

None	SetDcsMatrix (GlsMatrixAffine *matrix)

int	GetMaterialIndex ()

None	SetMaterialIndex (int matIndex)

str	GetObjectClassName ()

int	GetTextureIndex ()

None	SetTextureIndex (int texIndex)

TextureMap_e	GetTextureMappingTechnique ()

None	SetTextureMappingTechnique (TextureMap_e mappingTechnique)

bool	GetTextureRepeat ()

None	SetTextureRepeat (bool repeat)

disti::GlsColor	GetBlendingColor ()

None	SetBlendingColor (GlsColor blendColor)

DisplayObject::TextureFilter_e	GetTextureMagnificationFilter ()

None	SetTextureMagnificationFilter (DisplayObject::TextureFilter_e filter)

DisplayObject::TextureFilter_e	GetTextureMinificationFilter ()

None	SetTextureMinificationFilter (DisplayObject::TextureFilter_e filter)

list	GetTextureCoordinates ()

None	SetTextureCoordinates (list &texVerts)

None	GetTextureCoordinates (VertexArray *texVerts)

None	SetTextureCoordinates (VertexArray &texVerts)

None	GetTexturePoints (VertexArray *texVerts)

None	SetTexturePoints (VertexArray &texVerts)

None	SetTexturePoints (list &texVerts)

list	GetTexturePoints ()

None	GetVertices (VertexArray *verts)

None	SetVertices (VertexArray &verts)

str	GetInitialization ()

None	SetInitialization (str initCode)

str	GetCallbackCode ()

None	SetCallbackCode (str cbCode)

DisplayObject *	DuplicateObject (Document *doc=NULL)

DisplayObject *	TessellateObject ()

DisplayObject *	ExtrudeObject (float amount)

None	RotateObject (float amount, RotationAxis_e axis)

None	TranslateObject (float x, float y, float z)

None	ScaleObject (float x, float y, float z, Vertex *anchor=NULL)

None	LineWidth (float width)

float	LineWidth ()

LineStyle_e	LineStyle ()

None	LineStyle (LineStyle_e style)

GlsColor	LineColor ()

None	LineColor (GlsColor color)

GlsColor	FillColor ()

None	FillColor (GlsColor color)

None	GetExtents (Vector &min, Vector &max)

bool	HasUserDefinedAttribute (str attribName)

std::map< str, str >	GetUserDefinedAttributes ()

UserDefinedValueAttributeList	GetAllUserDefinedAttributes ()

str	GetUserDefinedAttributeValue (str attribName)

	typemap (check) str attribName

None	SetUserDefinedAttributeValue (str attribName, str value)

DisplayObject *	GetParent ()

Document *	GetDocument ()

str	AlternateClassName ()

None	AlternateClassName (str name)

str	GetAlternateClassHeaderFile ()

None	SetAlternateClassHeaderFile (str name)

str	GetResources ()

str	GetRuntimeResources (bool recursive)

str	GetAttributeType (str attribName)

str	GetAttributeValuestr (str attribName)

None	SetAttributeValuestr (str attribName, str value)

int	RegisterObserver (str attribName, PyObject *pyfunc)

None	UnregisterObserver (str attribName, int id)

list	GetNormals ()

None	SetNormals (list &normals)

list	GetExtraAttributes ()

DisplayObject *	CloneObject ()

None	CopyProperties (DisplayObject *sourceObj)

None	SetLocation (Vector loc)

GlsMatrixAffine	GetObjectCoordinatesTransform (DisplayObject *targetObject)

None	CalculateParentBoundingBox ()

None	SetOrigin (Vertex &vert)

Static Public Attributes
static int	TEXTURE_INDEX_NONE = -1

Detailed Description

Python extension for the DisplayObject Base Class.

This is the base class for all graphical objects. It is an abstract class. Each object drawn in the editor will have a corresponding object. All drawn objects are derived from this class.

Member Enumeration Documentation

◆ AlphaMode_e

enum DisplayObject::AlphaMode_e

Enumeration for Alpha Blending/Testing mode.

Enumerator
ALPHA_MODE_UNDEFINED	Alpha mode is not defined. Used by the properties page
ALPHA_MODE_OPAQUE	Alpha testing and blending are disabled.
ALPHA_MODE_2_LEVEL	Alpha testing with a threshold of 0.5 is enabled, alpha blending is enabled.
ALPHA_MODE_256_LEVEL	Alpha blending is enabled, alpha testing is disabled.

◆ LineStyle_e

enum DisplayObject::LineStyle_e

Line Style enumeration.

Passed into Line Style calls

Enumerator
SOLID_LINE_STYLE	Solid line style.
SMALL_DOTTED_LINE_STYLE	Small dotted line style.
DOTTED_LINE_STYLE	Dotted line style.
DASHED_LINE_STYLE	Dashed line style.
DOT_DASHED_LINE_STYLE	Dot Dashed line style.
SMALL_DASHED_LINE_STYLE	Small dashed line style.

◆ MemberAccess_e

enum DisplayObject::MemberAccess_e

Enumerator
PUBLIC	The object will be C++ public status
PRIVATE	The object will be C++ private status
PROTECTED	The object will be C++ protected status.

◆ PickableType_e

enum DisplayObject::PickableType_e

Enumerator
UNPICKABLE	Picking will be disabled for this object and all children.
FIRST_PICK	Picking will be based on draw order only. The first geometry hit wins.
BEST_PICK	Picking will find the best geometry hit of all available children.
ALWAYS_PICK	Picking will ignore geometry of this object, and always return a pick as if hit. This is still only found through normal draw order traversal.

◆ PolygonClose_e

enum DisplayObject::PolygonClose_e

Enumerator
POLY_OPEN	Polygon will be drawn open.
POLY_CLOSED	Polygon will be drawn closed.

◆ PolygonMode_e

enum DisplayObject::PolygonMode_e

Enumerator
POLY_MODE_UNDEFINED	Polygon draw style is not defined; not a drawable type. Used with the properties page
POLY_MODE_POINTS	Polygon will be rendered with a point at each vertex.
POLY_MODE_OUTLINE	Polygon will be rendered as an outline.
POLY_MODE_FILLED	Polygon will be rendered filled-in.
POLY_MODE_FILL_AND_OUTLINE	Polygon will be rendered filled-in and with an outline.

◆ RotationAxis_e

enum DisplayObject::RotationAxis_e

Enumerator
X_AXIS	Rotate around the X Axis.
Y_AXIS	Rotate around the Y Axis.
Z_AXIS	Rotate around the Z Axis.

◆ ShadingType_e

enum DisplayObject::ShadingType_e

Enumerator
SHADING_FLAT	The object will be drawn with flat shading (monochromatic)
SHADING_GOURAUD	The object will be drawn with gouraud shading (linear color interpolation)

◆ TessellateType_e

enum DisplayObject::TessellateType_e

Enumerator
TESSELLATE_UNION	Union tessellation.
TESSELLATE_INTERSECT	Intersection tessellation.
TESSELLATE_DIFFERENCE	Difference tessellation.

◆ TextureFilter_e

enum DisplayObject::TextureFilter_e

Enumerator
TEXTURE_FILTER_NEAREST	Nearest pixel filtering.
TEXTURE_FILTER_LINEAR	Bilinear interpolation filtering.
TEXTURE_FILTER_NEAREST_MIPMAP_NEAREST	Selects nearest pixel in the nearest mipmap.
TEXTURE_FILTER_LINEAR_MIPMAP_LINEAR	Linearly interpolates in two mipmaps then linearly interpolates between them.
TEXTURE_FILTER_NEAREST_MIPMAP_LINEAR	Selects nearest pixel in two mipmaps then linearly interpolates between them.
TEXTURE_FILTER_LINEAR_MIPMAP_NEAREST	Linearly interpolates in the nearest mipmap.

◆ TextureMap_e

enum DisplayObject::TextureMap_e

Enumerator
TEXTURE_MAP_MODULATE	Texture color and alpha are modulated with polygon color and alpha.
TEXTURE_MAP_DECAL	Texture color is blended with polygon color.
TEXTURE_MAP_BLEND	Texture color is blended with polygon color, texture alpha is modulated with polygon alpha.
TEXTURE_MAP_REPLACE	Texture color and alpha replace polygon color and alpha.

Member Function Documentation

◆ AlternateClassName() [1/2]

str DisplayObject::AlternateClassName ( )

Gets the alternate class name generated for object.

◆ AlternateClassName() [2/2]

None DisplayObject::AlternateClassName ( str name )

Sets the alternate class name generated for object.

◆ CalculateParentBoundingBox()

None DisplayObject::CalculateParentBoundingBox ( )

Calculates the bounding box of the parent group object.

Note: Needed if the object's extents or location is changed by the user.

Since: GL Studio 6.3.1

◆ CloneObject()

DisplayObject * DisplayObject::CloneObject ( )

Returns a clone of the DisplayObject.

Since: GL Studio 6.0.1

◆ CopyProperties()

None DisplayObject::CopyProperties ( DisplayObject * sourceObj )

Copies properties from the source object to this object.

Parameters

sourceObj The object to copy properties from

Since: GL Studio 7.0.1

◆ DuplicateObject()

DisplayObject * DisplayObject::DuplicateObject ( Document * doc = NULL )

Duplicates the display object.

Parameters

doc	Document to perform the action in, default NULL will use the parent of the object

Returns: DisplayObject * pointer to the new display object

◆ ExtrudeObject()

DisplayObject * DisplayObject::ExtrudeObject ( float amount )

Extrudes the object.

Parameters

amount Amount to extrude the object

Returns: DisplayObject * pointer to the new extruded object group

◆ FillColor() [1/2]

GlsColor DisplayObject::FillColor ( )

Gets the fill color of the Display Object.

Returns: GlsColor fill color of the Display Object

◆ FillColor() [2/2]

None DisplayObject::FillColor ( GlsColor color )

Sets the fill color of the Display Object.

Parameters

color fill color to be applied to the Display Object

◆ GetAffectZBufferFlag()

bool DisplayObject::GetAffectZBufferFlag ( )

Retrieves the display object's Affect Z-Buffer flag.

Returns: bool containing the state of the object's Affect Z-Buffer flag

◆ GetAllUserDefinedAttributes()

UserDefinedValueAttributeList DisplayObject::GetAllUserDefinedAttributes ( )

Retrieves the user defined value attributes for the Display Object.

Returns: UserDefinedValueAttributeList containing the user defined attributes

◆ GetAlphaMode()

int DisplayObject::GetAlphaMode ( )

Get the alpha mode for this object.

Returns: Whether or not alpha testing or blending is enabled when drawing

See also: AlphaMode_e

Since: GL Studio 6.0.1

◆ GetAlternateClassHeaderFile()

str DisplayObject::GetAlternateClassHeaderFile ( )

Gets the alternate class header file for object.

Since: GL Studio 6.0.1

◆ GetAntiAliasing()

bool DisplayObject::GetAntiAliasing ( )

Retrieves the display object's Anti-Aliasing flag.

Returns: bool containing the state of the object's anti-aliasing flag

◆ GetAttributeType()

str DisplayObject::GetAttributeType ( str attribName )

Returns: The underlying type name for a single attribute of the object. e.g. int, GlsColor

Parameters

attribName The name of the attribute whose type is to be returned.

◆ GetAttributeValuestr()

str DisplayObject::GetAttributeValuestr ( str attribName )

Gets the value for a single attribute of the object.

See also: SetAttributeValuestr(); GetResources()

◆ GetBlendingColor()

disti::GlsColor DisplayObject::GetBlendingColor ( )

Retrieves the display object's Blending Color.

Returns: GlsColor the object's Blending Color

◆ GetBlinking()

bool DisplayObject::GetBlinking ( )

Retrieves the display object's blinking flag.

Returns: bool containing the state of the object's blinking flag

◆ GetBlinkRate()

float DisplayObject::GetBlinkRate ( )

Retrieves the display object's blink rate.

Returns: float containing the rate of the object's blinking

◆ GetCallbackCode()

str DisplayObject::GetCallbackCode ( )

Retrieves the display object's callback code.

Returns: str the object's callback code

◆ GetClosePolygonFlag()

PolygonClose_e DisplayObject::GetClosePolygonFlag ( )

Retrieves the display object's Close Polygon flag.

Returns: PolygonClose_e containing the state of the object's Close Polygon flag

◆ GetCullBackFaces()

bool DisplayObject::GetCullBackFaces ( )

Retrieves the display object's Cull Backfaces flag.

Returns: bool containing the state of the object's Cull Backfaces flag

◆ GetDcsMatrix()

GlsMatrixAffine * DisplayObject::GetDcsMatrix ( )

Retrieves the display object's DCS matrix.

Returns: GlsMatrixAffine the object's DCS matrix

◆ GetDocument()

Document * DisplayObject::GetDocument ( )

Retrieves the display object's document.

Returns: Document * the object's document

◆ GetExtents()

None DisplayObject::GetExtents	(	Vector &	min,
		Vector &	max
	)

Figure out the static extents for the object.

Parameters

min	Gets the minimum extents
max	Gets the maximum extents

◆ GetExtraAttributes()

list DisplayObject::GetExtraAttributes ( )

Gets the properties added by Alternate Class Headers, Catalyzers, and Components.

Intended to support only Python-based code generation.

Returns: the properties in a tuple, where each property has the following attributes: attributeName, displayName, groupName, className, description, propType, prevVal, shouldDisplay, and propSource

Since: GL Studio 6.0.1

◆ GetGenerateMemberVariable()

bool DisplayObject::GetGenerateMemberVariable ( )

◆ GetInitialization()

str DisplayObject::GetInitialization ( )

Retrieves the display object's initialization code.

Returns: str the object's initialization code

◆ GetLightingEnabledFlag()

bool DisplayObject::GetLightingEnabledFlag ( )

Retrieves the display object's Lighting Enabled flag.

Returns: bool containing the state of the object's Lighting Enabled flag

◆ GetLocation()

Vertex DisplayObject::GetLocation ( )

Retrieves the display object's location.

Returns: Vertex the object's location

◆ GetLocked()

bool DisplayObject::GetLocked ( None )

Get the locked status for this object.

Returns: If this object is locked

◆ GetMaterialIndex()

int DisplayObject::GetMaterialIndex ( )

Retrieves the display object's Material Index.

Returns: int the object's Material Index

◆ GetName()

str DisplayObject::GetName ( )

Retrieves the display object's name.

Returns: str containing the name of the object

◆ GetNormals()

list DisplayObject::GetNormals ( )

Returns a list of Vector normals for the DisplayObject.

Since: GL Studio 6.0.1

◆ GetObjectClassName()

str DisplayObject::GetObjectClassName ( )

Retrieves the display object's ObjectClassName.

Returns: str the name of the ObjectClass

◆ GetObjectCoordinatesTransform()

GlsMatrixAffine DisplayObject::GetObjectCoordinatesTransform ( DisplayObject * targetObject )

Gets the transform matrix necessary to convert points from the targetObject to that of this object's coordinate space.

Parameters

targetObject the target object

Returns: transform matrix between the target object and this object

Since: GL Studio 6.3.1

◆ GetParent()

DisplayObject * DisplayObject::GetParent ( )

Retrieves the display object's parent.

Returns: DisplayObject * the object's parent object

◆ GetPickMode()

DisplayObject::PickableType_e DisplayObject::GetPickMode ( )

Retrieves the display object's pick mode.

Returns: DisplayObject::PickableType_e containing the pick mode of the object

◆ GetPolygonMode()

PolygonMode_e DisplayObject::GetPolygonMode ( )

Retrieves the display object's PolygonMode.

Returns: PolygonMode_e the object's PolygonMode

◆ GetProtectionMode()

DisplayObject::MemberAccess_e DisplayObject::GetProtectionMode ( None )

Get the protection mode for this object.

Returns: The protection mode for this object

See also: MemberAccess_e

◆ GetResources()

str DisplayObject::GetResources ( )

Gets all of the resources (AKA, attributes) at the object tree rooted at this object.

See also: GetAttributeValuestr(); SetAttributeValuestr()

◆ GetRotationPoint()

Vertex DisplayObject::GetRotationPoint ( )

Retrieves the display object's rotation point.

Returns: Vertex the object's rotation point

◆ GetRuntimeResources()

str DisplayObject::GetRuntimeResources ( bool recursive )

Gets all of the resources (AKA, attributes) at the object tree rooted at this object.

Only Gets resources that are available at runtime.

Parameters

recursive whether or not to recurse to children

See also: GetAttributeValuestr(); SetAttributeValuestr()

Since: GL Studio 6.0.1

◆ GetShadingMode()

ShadingType_e DisplayObject::GetShadingMode ( )

Retrieves the display object's Shading Mode.

Returns: ShadingType_e the object's Shading Mode

◆ GetTextureCoordinates() [1/2]

list DisplayObject::GetTextureCoordinates ( )

Retrieves the display object's Texture Coordinates.

Returns: a list of the object's Texture Coordinates

◆ GetTextureCoordinates() [2/2]

None DisplayObject::GetTextureCoordinates ( VertexArray * texVerts )

Retrieves the display object's Texture Coordinates.

Parameters

texVerts returns the object's Texture Coordinates

Deprecated:: Use GetTextureCoordinates() instead.

◆ GetTextureIndex()

int DisplayObject::GetTextureIndex ( )

Retrieves the display object's Texture Index.

Returns: int the object's Texture Index

◆ GetTextureMagnificationFilter()

DisplayObject::TextureFilter_e DisplayObject::GetTextureMagnificationFilter ( )

Retrieves the display object's Texture Magnification Filter.

Returns: DisplayObject::TextureFilter_e the object's Texture Magnification Filter

◆ GetTextureMappingTechnique()

TextureMap_e DisplayObject::GetTextureMappingTechnique ( )

Retrieves the display object's Texture Mapping Technique.

Returns: TextureMap_e the object's Texture Mapping Technique

◆ GetTextureMinificationFilter()

DisplayObject::TextureFilter_e DisplayObject::GetTextureMinificationFilter ( )

Retrieves the display object's Texture Minification Filter.

Returns: DisplayObject::TextureFilter_e the object's Texture Minification Filter

◆ GetTexturePoints() [1/2]

list DisplayObject::GetTexturePoints ( )

Retrieves the display object's Texture Points.

Returns: the object's Texture Points

Since: GL Studio 6.0.1

◆ GetTexturePoints() [2/2]

None DisplayObject::GetTexturePoints ( VertexArray * texVerts )

Retrieves the display object's Texture Points.

Parameters

texVerts returns the object's Texture Points

Deprecated:: Use GetTexturePoints() instead.

◆ GetTextureRepeat()

bool DisplayObject::GetTextureRepeat ( )

Retrieves the display object's Texture Repeat.

Returns: bool if the object has Texture Repeat on

◆ GetUserDefinedAttributes()

std::map< str, str > DisplayObject::GetUserDefinedAttributes ( )

Gets a read-only dict of all user defined attributes for the Display Object.

# Example usage accessing the dictionary
attribs = polygon.GetUserDefinedAttributes()
if 'attribName' in attribs:
    attribValue = attribs['attribName']

# The following code will *not* change the object it was retrieved from:
attribs['attribName'] = 'This Assignment changes Nothing'

Returns: READ-ONLY dictionary of all user defined attributes for an object. Do not use the returned dictionary to set values, they will not be saved!

Since: GL Studio 6.0.1

◆ GetUserDefinedAttributeValue()

str DisplayObject::GetUserDefinedAttributeValue ( str attribName )

Gets the value of the user defined attribute for the Display Object.

Parameters

attribName name of the attribute for which to find the value

Returns: str value of the attribute, or None if there is no Attribute named attribName

◆ GetVertices()

None DisplayObject::GetVertices ( VertexArray * verts )

Retrieves the display object's Vertices.

Parameters

verts returns the object's Vertices

◆ GetVisibilityFlag()

bool DisplayObject::GetVisibilityFlag ( )

Retrieves the display object's Visibility flag.

Returns: bool containing the state of the object's Visibility flag

◆ GetZBufferTestedFlag()

bool DisplayObject::GetZBufferTestedFlag ( )

Retrieves the display object's Z-Buffer Tested flag.

Returns: bool containing the state of the object's Z-Buffer Tested flag

◆ HasUserDefinedAttribute()

bool DisplayObject::HasUserDefinedAttribute ( str attribName )

Checks the value of the user defined attribute for the Display Object.

Parameters

attribName name of the attribute for which to find the value

Returns: bool if the attribute exists or not

Since: GL Studio 6.0.1

◆ isNULL()

bool DisplayObject::isNULL ( )

Determine if wrapped display object does not exist.

Returns: true if wrapped display object does not exist, else false

Deprecated:: Refer to the Truth Value Checking page

◆ LineColor() [1/2]

GlsColor DisplayObject::LineColor ( )

Gets the line color of the Display Object.

Returns: GlsColor line color of the Display Object

◆ LineColor() [2/2]

None DisplayObject::LineColor ( GlsColor color )

Sets the line color of the Display Object.

Parameters

color line color to be applied to the Display Object

◆ LineStyle() [1/2]

LineStyle_e DisplayObject::LineStyle ( )

Gets the line style of the Display Object.

Returns: LineStyle_e line style of the Display Object

◆ LineStyle() [2/2]

None DisplayObject::LineStyle ( LineStyle_e style )

Sets the line style of the Display Object.

Parameters

style line style to be applied to the Display Object

◆ LineWidth() [1/2]

float DisplayObject::LineWidth ( )

Gets the line width of the Display Object.

Returns: float line width of the Display Object

◆ LineWidth() [2/2]

None DisplayObject::LineWidth ( float width )

Sets the line width of the Display Object.

Parameters

width line width to be applied to the Display Object

◆ RegisterObserver()

int DisplayObject::RegisterObserver	(	str	attribName,
		PyObject *	pyfunc
	)

Register a python function to be called when the specified attribute changes value.

This function does not take ownership of the python function, so it must persist in order to be called. When the python function goes away, it will be automatically unregistered.

Parameters

attribName	the name of the attribute to register with
pyfunc	the python function to call when the attribute is changed is changed. It takes a single paramater, which is the string value of the attribute, as would be normally returned with a call to GetAttributeValuestr

Returns: The ID of this registration.

◆ RotateObject()

None DisplayObject::RotateObject	(	float	amount,
		RotationAxis_e	axis
	)

Rotate the object.

Parameters

amount	amount to rotate the object
axis	axis of rotation

◆ ScaleObject()

None DisplayObject::ScaleObject	(	float	x,
		float	y,
		float	z,
		Vertex *	anchor = `NULL`
	)

Scale the object.

Parameters

x	Value of the percentage of scale in x-axis
y	Value of the percentage of scale in y-axis
z	Value of the percentage of scale in z-axis
anchor	Anchor from which to scale object relative to, default NULL will anchor at object location

◆ SetAffectZBufferFlag()

None DisplayObject::SetAffectZBufferFlag ( bool affect )

Sets the display object's Affect Z-Buffer flag.

Parameters

affect New state for the Affect Z-Buffer flag of the object

◆ SetAlphaMode()

None DisplayObject::SetAlphaMode ( int mode )

Set the alpha mode state for this object.

Parameters

mode	which alpha mode to use when drawing

See also: AlphaMode_e

Since: GL Studio 6.0.1

◆ SetAlternateClassHeaderFile()

None DisplayObject::SetAlternateClassHeaderFile ( str name )

Sets the alternate class header file for object.

Since: GL Studio 6.0.1

◆ SetAntiAliasing()

None DisplayObject::SetAntiAliasing ( bool antiAliasing )

Sets the display object's name.

Parameters

antiAliasing New state for the anti-aliasing flag of the object

◆ SetAttributeValuestr()

None DisplayObject::SetAttributeValuestr	(	str	attribName,
		str	value
	)

Sets the value for a single attribute of the object.

See also: GetAttributeValuestr(); GetResources()

◆ SetBlendingColor()

None DisplayObject::SetBlendingColor ( GlsColor blendColor )

Sets the display object's Blending Color.

Parameters

blendColor New Blending Color of the object

◆ SetBlinking()

None DisplayObject::SetBlinking ( bool blinking )

Sets the display object's blinking flag.

Parameters

blinking New state for the blinking flag of the object

◆ SetBlinkRate()

None DisplayObject::SetBlinkRate ( float rate )

Sets the display object's blinking rate.

Parameters

rate	New rate for the blink of the object

◆ SetCallbackCode()

None DisplayObject::SetCallbackCode ( str cbCode )

Sets the display object's callback code.

Parameters

cbCode New callback code for the object

◆ SetClosePolygonFlag()

None DisplayObject::SetClosePolygonFlag ( PolygonClose_e closePolygon )

Sets the display object's Close Polygon flag.

Parameters

closePolygon New state for the Close Polygon flag of the object

◆ SetCullBackFaces()

None DisplayObject::SetCullBackFaces ( bool cullFaces )

Sets the display object's Cull Backfaces flag.

Parameters

cullFaces New state for the Cull Backfaces flag of the object

◆ SetDcsMatrix()

None DisplayObject::SetDcsMatrix ( GlsMatrixAffine * matrix )

Sets the display object's DCS matrix.

Parameters

matrix New DCS matrix to apply to the object

◆ SetGenerateMemberVariable()

None DisplayObject::SetGenerateMemberVariable ( bool b )

◆ SetInitialization()

None DisplayObject::SetInitialization ( str initCode )

Sets the display object's initialization code.

Parameters

initCode New initialization code for the object

◆ SetLightingEnabledFlag()

None DisplayObject::SetLightingEnabledFlag ( bool enabled )

Sets the display object's Lighting Enabled flag.

Parameters

enabled New state for the Lighting Enabled flag of the object

◆ SetLocation() [1/2]

None DisplayObject::SetLocation ( Vector loc )

Sets the display object's location.

Parameters

loc	New location of the object

See also: SetLocation( Vertex )

Since: GL Studio 6.2.1

◆ SetLocation() [2/2]

None DisplayObject::SetLocation ( Vertex loc )

Sets the display object's location.

Parameters

loc	New location of the object

See also: SetLocation( Vector )

◆ SetLocked()

None DisplayObject::SetLocked ( bool val )

Set the locked status for this object.

Parameters

val	Set locked status.

◆ SetMaterialIndex()

None DisplayObject::SetMaterialIndex ( int matIndex )

Sets the display object's Material Index.

Parameters

matIndex New Material Index of the object

◆ SetName()

str DisplayObject::SetName ( str name )

Sets the display object's name.

If name is not a valid C++ identifier, it will attempt to make it one. If it is unable to set it after fixing, it will throw an exception. If an object with the same name already exists, will throw an exception.

Parameters

name	New name of object

Returns: The name the object was set to. If name was not a valid C++ identifier, the returned name will be a valid identifier.
objName = "invalid name"

objName = obj.SetName( objName )

print objName

> "invalid_name"

Exceptions

RuntimeError	If `name` is empty
RuntimeError	If `name` cannot be made into a valid C++ identifier

Since: GL Studio 6.0.1 - Fixes up invalid names and returns the name the object was set to.

◆ SetNormals()

None DisplayObject::SetNormals ( list & normals )

Sets the normal vectors for the DisplayObject.

Parameters

normals the list of new normal Vectors for the object

Since: GL Studio 6.0.1

◆ SetOrigin()

None DisplayObject::SetOrigin ( Vertex & vert )

Redefines the frame of reference for the object.

Since the vertices in the object are specified relative to the _location member, this routine allows you to specify the absolute coordinate for _location and then recalculates the vertices to be relative to that new location

Parameters

vert	The new origin point for the object

Since: GL Studio 6.3.1

◆ SetPickMode()

None DisplayObject::SetPickMode ( DisplayObject::PickableType_e mode )

Sets the display object's pick mode.

Parameters

mode	New mode for object's pick mode

◆ SetPolygonMode()

None DisplayObject::SetPolygonMode ( PolygonMode_e polygonMode )

Sets the display object's PolygonMode.

Parameters

polygonMode New state for the PolygonMode of the object

◆ SetProtectionMode()

None DisplayObject::SetProtectionMode ( DisplayObject::MemberAccess_e mode )

Set the protection mode for this object.

i.e., will the object be generated as a pubic, private, or protected member variable?

Parameters

mode	How the variable will be generated: PUBLIC, PRIVATE, PROTECTED

See also: MemberAccess_e

◆ SetRotationPoint()

None DisplayObject::SetRotationPoint ( Vertex rotPoint )

Sets the display object's rotation point.

Parameters

rotPoint New location of the object's rotation point

◆ SetShadingMode()

None DisplayObject::SetShadingMode ( ShadingType_e shadingMode )

Sets the display object's Shading Mode.

Parameters

shadingMode New Shading Mode of the object

◆ SetTextureCoordinates() [1/2]

None DisplayObject::SetTextureCoordinates ( list & texVerts )

Sets the display object's Texture Coordinates.

Parameters

texVerts New Texture Coordinates of the object

◆ SetTextureCoordinates() [2/2]

None DisplayObject::SetTextureCoordinates ( VertexArray & texVerts )

Sets the display object's Texture Coordinates.

Parameters

texVerts New Texture Coordinates of the object

Deprecated:: Use SetTextureCoordinates( list& ) instead.

◆ SetTextureIndex()

None DisplayObject::SetTextureIndex ( int texIndex )

Sets the display object's Texture Index.

Parameters

texIndex New Texture Index of the object

◆ SetTextureMagnificationFilter()

None DisplayObject::SetTextureMagnificationFilter ( DisplayObject::TextureFilter_e filter )

Sets the display object's Texture Magnification Filter.

Parameters

filter New Texture Magnification Filter of the object; either TEXTURE_FILTER_NEAREST or TEXTURE_FILTER_LINEAR

◆ SetTextureMappingTechnique()

None DisplayObject::SetTextureMappingTechnique ( TextureMap_e mappingTechnique )

Sets the display object's Texture Mapping Technique.

Parameters

mappingTechnique New Texture Mapping Technique of the object

◆ SetTextureMinificationFilter()

None DisplayObject::SetTextureMinificationFilter ( DisplayObject::TextureFilter_e filter )

Sets the display object's Texture Minification Filter.

Parameters

filter New Texture Minification Filter of the object

◆ SetTexturePoints() [1/2]

None DisplayObject::SetTexturePoints ( list & texVerts )

Sets the display object's Texture Points.

Parameters

texVerts New Texture Points of the object

Since: GL Studio 6.0.1

◆ SetTexturePoints() [2/2]

None DisplayObject::SetTexturePoints ( VertexArray & texVerts )

Sets the display object's Texture Points.

Parameters

texVerts New Texture Points of the object

Deprecated:: Use SetTexturePoints( list& ) instead.

◆ SetTextureRepeat()

None DisplayObject::SetTextureRepeat ( bool repeat )

Sets the display object's Texture Repeat.

Parameters

repeat New Texture Repeat of the object

◆ SetUserDefinedAttributeValue()

None DisplayObject::SetUserDefinedAttributeValue	(	str	attribName,
		str	value
	)

Sets the value of the user defined attribute for the Display Object.

Parameters

attribName	name of the attribute for which to set the value
value	value to be given to the attribute

◆ SetVertices()

None DisplayObject::SetVertices ( VertexArray & verts )

Sets the display object's Vertices.

Parameters

verts New vertex list for the object, with at least two vertices

◆ SetVisibilityFlag()

None DisplayObject::SetVisibilityFlag ( bool visible )

Sets the display object's Visibility flag.

Parameters

visible New state for the Visibility flag of the object

◆ SetZBufferTestedFlag()

None DisplayObject::SetZBufferTestedFlag ( bool tested )

Sets the display object's Z-Buffer Tested flag.

Parameters

tested New state for the Z-Buffer Tested flag of the object

◆ TessellateObject()

DisplayObject * DisplayObject::TessellateObject ( )

Tessellates the object.

Returns: DisplayObject * pointer to the new tessellated object group

◆ TranslateObject()

None DisplayObject::TranslateObject	(	float	x,
		float	y,
		float	z
	)

Translate the object.

Parameters

x	translation amount along the x-axis
y	translation amount along the y-axis
z	translation amount along the z-axis

◆ typemap()

DisplayObject::typemap ( check )

◆ UnregisterObserver()

None DisplayObject::UnregisterObserver	(	str	attribName,
		int	id
	)

Unregister a previously registered observer.

Parameters

attribName	the name of the attribute to unregister with
id	the id that was returned from the call to RegisterObserver

Member Data Documentation

◆ TEXTURE_INDEX_NONE

int DisplayObject::TEXTURE_INDEX_NONE = -1

static

The documentation for this class was generated from the following file:

DisplayObject.i

Public Types

Public Member Functions

Static Public Attributes

Detailed Description

Member Enumeration Documentation

◆ AlphaMode_e

◆ LineStyle_e

◆ MemberAccess_e

◆ PickableType_e

◆ PolygonClose_e

◆ PolygonMode_e

◆ RotationAxis_e

◆ ShadingType_e

◆ TessellateType_e

◆ TextureFilter_e

◆ TextureMap_e

Member Function Documentation

◆ AlternateClassName() [1/2]

◆ AlternateClassName() [2/2]

◆ CalculateParentBoundingBox()

◆ CloneObject()

◆ CopyProperties()

◆ DuplicateObject()

◆ ExtrudeObject()

◆ FillColor() [1/2]

◆ FillColor() [2/2]

◆ GetAffectZBufferFlag()

◆ GetAllUserDefinedAttributes()

◆ GetAlphaMode()

◆ GetAlternateClassHeaderFile()

◆ GetAntiAliasing()

◆ GetAttributeType()

◆ GetAttributeValuestr()

◆ GetBlendingColor()

◆ GetBlinking()

◆ GetBlinkRate()

◆ GetCallbackCode()

◆ GetClosePolygonFlag()

◆ GetCullBackFaces()

◆ GetDcsMatrix()

◆ GetDocument()

◆ GetExtents()

◆ GetExtraAttributes()

◆ GetGenerateMemberVariable()

◆ GetInitialization()

◆ GetLightingEnabledFlag()

◆ GetLocation()

◆ GetLocked()

◆ GetMaterialIndex()

◆ GetName()

◆ GetNormals()

◆ GetObjectClassName()

◆ GetObjectCoordinatesTransform()

◆ GetParent()

◆ GetPickMode()

◆ GetPolygonMode()

◆ GetProtectionMode()

◆ GetResources()

◆ GetRotationPoint()

◆ GetRuntimeResources()

◆ GetShadingMode()

◆ GetTextureCoordinates() [1/2]

◆ GetTextureCoordinates() [2/2]

◆ GetTextureIndex()

◆ GetTextureMagnificationFilter()

◆ GetTextureMappingTechnique()

◆ GetTextureMinificationFilter()

◆ GetTexturePoints() [1/2]

◆ GetTexturePoints() [2/2]

◆ GetTextureRepeat()

◆ GetUserDefinedAttributes()

◆ GetUserDefinedAttributeValue()

◆ GetVertices()

◆ GetVisibilityFlag()

◆ GetZBufferTestedFlag()

◆ HasUserDefinedAttribute()

◆ isNULL()

◆ LineColor() [1/2]

◆ LineColor() [2/2]

◆ LineStyle() [1/2]
