#include <gls_angular_scale.h>

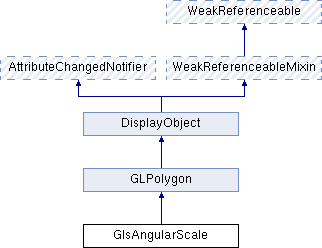

Inheritance diagram for GlsAngularScale:

Public Types
typedef GLPolygon	_BaseClass
	Deprecated typedef for the base class.

typedef GLPolygon	BaseClass
	Typedef for the base class.

Public Types inherited from GLPolygon
typedef DisplayObject	_BaseClass
	Deprecated typedef for the base class.

typedef DisplayObject	BaseClass
	Typedef for the base class.

Public Types inherited from DisplayObject
enum	AvailableAttributesEnum { GLS_ATTRIBUTES_BASIC = 1 , GLS_ATTRIBUTES_DYNAMIC = 2 , GLS_ATTRIBUTES_APPEARANCE = 4 , GLS_ATTRIBUTES_GEOMETRY = 8 , GLS_ATTRIBUTES_SPECIALIZED = 16 , GLS_ATTRIBUTES_ALL = ~0 , GLS_ATTRIBUTES_NONE = 0 }

Public Member Functions
	GlsAngularScale (bool generateInstance=false)

	GlsAngularScale (const GlsAngularScale &that, const bool generateNames)

virtual	~GlsAngularScale ()

virtual void	SetAvailableAttributes (unsigned int value) DISTI_METHOD_OVERRIDE

virtual DisplayObject *	CloneObject (bool generateNames=false) DISTI_METHOD_OVERRIDE

virtual void	CopyProperties (DisplayObject *src) DISTI_METHOD_OVERRIDE

virtual void	CopyGeometry (DisplayObject *srcArg) DISTI_METHOD_OVERRIDE

virtual void	PreDraw (const OpenGLMatrices &parentMatrices, Culler &culler) DISTI_METHOD_OVERRIDE

virtual void	Draw () DISTI_METHOD_OVERRIDE

virtual void	Scale (float px, float py, float pz, Vertex *anchor, int handleBar) DISTI_METHOD_OVERRIDE

virtual void	Rotate (const Vector &orig, float angle, const Vector &axis) DISTI_METHOD_OVERRIDE

virtual bool	Hit (float x, float y, float z, float scale, const Vector &directionVector, Vector *collisionPoint) DISTI_METHOD_OVERRIDE

virtual Vertex *	Vertices () DISTI_METHOD_OVERRIDE

virtual void	GetExtents (float &minx, float &miny, float &minz, float &maxx, float &maxy, float &maxz) DISTI_METHOD_OVERRIDE

virtual void	GetTransformedExtents (Vector &min, Vector &max, const GlsMatrixType &matrix, bool resetMinMax) DISTI_METHOD_OVERRIDE

virtual void	UpdateBoundingVolume () DISTI_METHOD_OVERRIDE

virtual void	SetColor (const GlsColor &color) DISTI_METHOD_OVERRIDE

void	SetLineColor (const GlsColor &color)

DisplayObject *	handle (DisplayEvent *ev) DISTI_METHOD_OVERRIDE

virtual void	SetValue (int spec, va_list &args) DISTI_METHOD_OVERRIDE

void	SetScale (int index, const GlsAngularScaleData &data)

void	GetScale (int index, GlsAngularScaleData &data)

void	DeconflictTicks (const bool &val)

bool	DeconflictTicks ()

bool	HaloEnabled ()

void	HaloEnabled (const bool &val)

float	HaloWidth ()

void	HaloWidth (const float &val)

GlsColor	HaloColor ()

void	HaloColor (const GlsColor &val)

float	Radius ()

void	Radius (const float &val)

void	InvalidateGeometry ()

Public Member Functions inherited from GLPolygon
	GLPolygon (unsigned int nPoints, const Vertex *vertices)

	GLPolygon (unsigned int nPoints, const Vertex *vertices, const Vertex &location)

	GLPolygon ()

	GLPolygon (const GLPolygon &polygon, const bool generateNames)

virtual	~GLPolygon ()

void	ConfigureMetaData ()

virtual DisplayObject *	CloneObject (bool generateNames=false)

virtual void	PreDraw (const OpenGLMatrices &current, Culler &culler) override

virtual void	Draw () override

virtual void	CalculateTextureCoordinates ()

virtual void	CalcNormals (int windingOrder=1)

virtual void	SetFillColor (unsigned char r, unsigned char g, unsigned char b, unsigned char a)

virtual void	SetFillColor (const GlsColor &color)

virtual void	DeleteVertexAt (unsigned int index)

virtual DisplayObject *	Pick3D (const Vector &winLoc, const Vector &logicalCoords, float scale, const Vector &directionVector, Vector &collisionWinLoc, const OpenGLMatrices &drawnMatrices) override

Public Member Functions inherited from DisplayObject
	DisplayObject (float x, float y, float z)

	DisplayObject (const DisplayObject &object, const bool generateNames)

virtual	~DisplayObject ()

void	Destroy ()

virtual void	SetAvailableAttributes (unsigned int value)

virtual void	AlphaMode (int mode)

virtual int	AlphaMode ()

virtual bool	AntiAlias ()

virtual void	AntiAlias (bool alias)

void	ApplyTextureSettings (int textureIndex=-1)

DistiAttribDict &	Attributes ()

const DistiAttribDict &	Attributes () const

virtual void	SetBlendColor (const GlsColor &color)

void	GetBlendColor (unsigned char color[])

void	GetBlendColor (unsigned char &r, unsigned char &g, unsigned char &b, unsigned char &a)

virtual GlsColor	GetBlendColor ()

void	SetBlendColor (unsigned char color[])

void	SetBlendColor (unsigned char r, unsigned char g, unsigned char b, unsigned char a)

virtual bool	BlinkedOff ()

virtual bool	Blinking ()

virtual void	Blinking (const bool blink)

virtual float	BlinkRate ()

virtual void	BlinkRate (const float rate)

const Vector &	BoundingVolumeCenter () const

void	BoundingVolumeCenter (const Vector &center)

bool	BoundingVolumeHit (const Vector &start, const Vector &direction)

float	BoundingVolumeRadius () const

void	BoundingVolumeRadius (float radius)

virtual void	Calculate (double time)

void	CalculateCollisionPoint (const Vector &pickLoc, const Vector &directionVector, Vector *collisionPoint)

virtual void	CalculateParentBoundingBox ()

virtual void	CalculateTextureCoordinates ()

bool	GetTexturePointTransformationMatrix (GlsMatrixType &world2tex)

CallbackMethodCallerBase *	CallbackCaller () const

void	CallbackCaller (CallbackMethodCallerBase *cb)

virtual void	GetCenter (Vector &center)

virtual DisplayObject *	CloneObject (bool generateNames=false)=0

virtual GlsColor	GetColor ()

void	GetColor (unsigned char c4[])

void	GetColor (unsigned char &r, unsigned char &g, unsigned char &b, unsigned char &a)

virtual void	SetColor (const GlsColor &color)

void	SetColor (unsigned char c4[])

void	SetColor (unsigned char r, unsigned char g, unsigned char b, unsigned char a)

virtual void	CopyGeometry (DisplayObject *src)

virtual void	CopyHierarchyProperties (DisplayObject *src, bool copyName)

virtual void	CopyProperties (DisplayObject *src)

virtual void	CullBackFace (const bool val)

virtual bool	CullBackFace ()

bool	Culled () const

void	Culled (bool val)

bool	CullTest (const GlsMatrixType *matrix, const Culler &culler)

GlsMatrixType &	DcsMatrix ()

GlsMatrixType	DcsMatrix () const

void	DcsMatrix (const GlsMatrixType &matrix)

virtual void	DeleteVertexAt (unsigned int index)

virtual void	DeleteVertex (unsigned int indexAfter) final

virtual int	DepthTest ()

virtual void	DepthTest (unsigned char zbuf)

virtual void	Draw ()=0

const GlsMatrixType *	DrawMatrix ()

bool	NeedCalcDrawMatrix ()

void	DynamicRotate (float angle, int axis)

void	DynamicRotate (const Vector &v)

void	DynamicRotate (float angle[])

virtual void	DynamicRotate (float x, float y, float z)

virtual void	DynamicRotateRelative (float angle, int axis)

virtual float	DynamicRotation (int axis)

virtual Vector	DynamicRotation ()

virtual Vector	DynamicScale ()

virtual void	DynamicScale (float x, float y, float z)

void	DynamicScale (const Vector &scale)

virtual void	DynamicTranslate (float x, float y, float z, bool relative=false)

void	DynamicTranslate (const Vertex &amount, bool relative)

void	DynamicTranslate (const Vector &amount)

virtual void	DynamicTranslateAxis (float amount, int axis, bool relative)

virtual float	DynamicTranslation (int axis)

virtual Vector	DynamicTranslation ()

DisplayObjectEditor *	Editor ()

const DisplayObjectEditor *	Editor () const

void	Editor (DisplayObjectEditor *editor)

virtual void	GetExtents (float &x, float &y, float &z, float &x1, float &y1, float &z1)

void	GetExtentsDCS (Vector &min, Vector &max)

void	GetFillColor (unsigned char &r, unsigned char &g, unsigned char &b, unsigned char &a)

void	GetFillColor (unsigned char c4[])

virtual GlsColor	GetFillColor ()

void	SetFillColor (unsigned char r, unsigned char g, unsigned char b, unsigned char a)

void	SetFillColor (unsigned char c4[])

virtual void	SetFillColor (const GlsColor &color)

virtual void	FinishObject ()

virtual void	GenerateInstanceName ()

virtual DisplayObject *	handle (DisplayEvent *ev)

virtual bool	Hit (float x, float y, float z, float scale, const Vector &directionVector, Vector *collisionPoint)

virtual bool	HitUtil (float x, float y, float z, float scale, Vertex vertices, unsigned int vertex_cnt, const Vector &directionVector, Vector collisionPoint)

virtual void	InsertVertexAt (unsigned int index)

virtual void	InsertVertex (unsigned int indexAfter) final

char *	InstanceName ()

const char *	InstanceName () const

void	InstanceName (const char *name)

virtual bool	LightingEnabled ()

virtual void	LightingEnabled (bool lighting)

virtual int	LineStippleMultiplier ()

virtual void	LineStippleMultiplier (int mult)

virtual int	LineStipplePattern ()

virtual void	LineStipplePattern (int pattern)

virtual float	LineWidth ()

virtual void	LineWidth (float width)

virtual const Vertex &	Location () const

virtual void	Location (const Vertex &v)

virtual void	Location (float x, float y, float z)

virtual void	GetLocation (Vertex &v)

virtual void	GetLocation (float &x, float &y, float &z)

float	X () const

float	Y () const

float	Z () const

void	X (const float x)

void	Y (const float y)

void	Z (const float z)

virtual int	MaterialIndex ()

virtual void	MaterialIndex (int index)

virtual DynamicArray< int > &	MaterialIndices ()

virtual void	MaterialIndices (DynamicArray< int > indices)

GlsMatrixType *	ModelMatrix ()

bool	NeedCalculate ()

Vector *	Normals ()

virtual void	SetNormals (unsigned int nPoints, Vector *vertices)

void	VaSetNormals (unsigned int nPoints,...)

unsigned int	NumberOfVertices () const

virtual float	ObjectDepth ()

virtual float	ObjectHeight ()

virtual float	ObjectWidth ()

virtual void	SetOrigin (const Vertex &vert)

virtual void	Parent (DisplayFrame *par)

DisplayFrame *	Parent () const

virtual void	ParentGroup (Group *group)

Group *	ParentGroup () const

virtual DisplayObject *	Pick3D (const Vector &winLoc, const Vector &logicalCoords, float scale, const Vector &directionVector, Vector &collisionWinLoc, const OpenGLMatrices &drawnMatrices)

unsigned char	Pickable ()

virtual void	Pickable (unsigned char pick)

virtual int	PolygonEnd ()

virtual void	PolygonEnd (const int end)

virtual int	PolygonMode ()

virtual void	PolygonMode (int mode)

virtual void	PreDraw (const OpenGLMatrices &current, Culler &culler)

GlsMatrixType *	ProjMatrix ()

virtual void	ReallocateVertices (unsigned int numVertices, bool initializeNew, bool copyOld)

virtual float	RelativeAngle (const float x, const float y)

virtual DistiAttributeBase &	Resource (const char *name)

virtual void	GetResources (std::ostream &outstr, GlsResourceFilter *filter=NULL)

const Vertex &	RotationPoint () const

virtual void	RotationPoint (const Vertex &v)

virtual void	RotationPoint (float x, float y, float z)

virtual void	GetRotationPoint (Vertex &v)

virtual void	Rotate (float angle, int axis=Z_AXIS)

virtual void	Rotate (const Vector &origin, float angle, int axis=Z_AXIS)

virtual void	Rotate (const Vector &orig, float angle, const Vector &axis)

void	SaveMatrices ()

virtual void	Scale (float px, float py, float pz, Vertex *anchor, int handleBar=0)

void	Set (int spec,...)

bool	SetupAlpha ()

void	SetupDepthTest ()

void	SetupLighting ()

bool	SetupLineStyle ()

bool	SetupTexture ()

virtual int	Shading ()

virtual void	Shading (const int shading)

virtual void	GetTransformedExtents (Vector &min, Vector &max, const GlsMatrixType &matrix, bool resetMinMax=true)

virtual void	SetTexCoords (unsigned int nPoints, Vector *new_tex_coord, bool isVectorArray=true)

void	SetTexCoords (unsigned int nPoints, Vertex *new_tex_coord)

void	VaSetTexCoords (unsigned int nPoints,...)

Vector *	TextureCoordinates ()

Vector *	GetTextureCoordinates ()

virtual int	TextureIndex ()

virtual void	TextureIndex (int textureIndex)

virtual Vector *	GetTexturePoints ()

virtual bool	TextureRepeat ()

virtual void	TextureRepeat (const int rep)

virtual int	TextureMappingTechnique ()

virtual void	TextureMappingTechnique (const int map)

virtual int	TextureMagnificationFilter ()

virtual void	TextureMagnificationFilter (const int filter)

virtual int	TextureMinificationFilter ()

virtual void	TextureMinificationFilter (const int filter)

virtual void	Translate (float tr[])

virtual void	Translate (float x, float y, float z)

virtual void	TranslateVertices (float x, float y, float z)

virtual void	UpdateBoundingVolume ()

void *	UserData () const

void	UserData (void *data)

virtual void	SetVertexColor (unsigned int vertex, unsigned char CurrentFillColor[])

virtual Vertex *	Vertices ()

virtual void	SetVertices (unsigned int nPoints, Vertex *vertices)

void	VaSetVertices (unsigned int nPoints,...)

int *	ViewMatrix ()

bool	Visible () const

bool	Visibility () const

virtual void	Visibility (const bool vis)

virtual Vector	WorldRotationPoint ()

virtual void	WorldRotationPoint (const Vector &vert)

virtual Vertex	WorldVertex (unsigned int i)

virtual void	WorldVertex (unsigned int i, const Vertex &vert)

bool	LogicalToWindow (const Vector &logical, Vector &winLoc, const OpenGLMatrices &alternateMatrices=OpenGLMatrices())

bool	WindowToLogical (const Vector &winLoc, Vector &logical, Vector *directionVector=NULL, const OpenGLMatrices &alternateMatrices=OpenGLMatrices())

void	LogicalToDCS (Vector logicalPoint, Vector &objectLocal, const Vector directionVector, const Vector &planeNormal=Vector(0, 0, 1), const Vector &planePoint=Vector(), const GlsMatrixType dcsMatrix=NULL)

void	DCSToLogical (Vector dcsPoint, Vector &logicalPoint, const GlsMatrixType *dcsMatrix=NULL)

bool	Create (GlsGloFile &dataStream, Group *parent)

void	GeometryRefresh ()
	Invalidates the painter and refreshes the geometry on the next paint cycle.

virtual bool	GetPlaneVectorPoints (Vertex &p1, Vertex &p2, Vertex &p3, Vertex &planeVector)

void	NotifyAttributeChanged (const AttributeName &name) override

virtual void	SetPainter (GlsPainter *painter)

virtual GlsPainter *	GetPainter ()

void	InvalidatePainter ()

virtual bool	IsVisibleInScene (const DisplayObject *obj=NULL) const

Public Member Functions inherited from AttributeChangedNotifier
virtual void	NotifyAttributeChanged (const AttributeName &name)=0

virtual	~AttributeChangedNotifier ()

Public Member Functions inherited from WeakReferenceableMixin
void	AddWeakReference (WeakReference *weakRef) override

void	NotifyWeakReferenceDestroyed (WeakReference *ref) override

virtual void	AddWeakReference (WeakReference *weakRef)=0

virtual void	NotifyWeakReferenceDestroyed (WeakReference *weakReference)=0

Static Public Member Functions
static DisplayObject *	CreateInstance ()

Static Public Member Functions inherited from GLPolygon
static DisplayObject *	CreateInstance ()

Static Public Member Functions inherited from DisplayObject
static void	UseManualBlinkElapsedTime (bool useManualTime)

static void	SetManualBlinkElapsedTime (double elapsedTime)

Protected Member Functions
void	MagnitudeChanged ()

void	CalculateRadiiUnit ()

void	BakeVBO ()
	Updates the VBO(s) when the object changes.

void	RecomputeVertices ()

bool	TickNeeded (int currentLevel, float currentAngle)

void	DrawScale (int i, float haloLength, float haloThickness, GlsColor &color)

virtual void	SetFromGloData (GlsGloFileAttribute &data) DISTI_METHOD_OVERRIDE

Protected Member Functions inherited from GLPolygon
void	DrawSolidGeometry (bool textureObject, bool gouraudShading, bool normal)

void	DrawOutlineGeometry ()
	Draws lines that form this polygon's outline.

void	DrawPoints ()
	Draws a point for each vertex of this polygon.

void	BakeVBO (bool hasT, bool hasC, bool hasN)

Protected Member Functions inherited from DisplayObject
virtual void	VaListSetVertices (unsigned int nPoints, va_list args)

virtual void	VaListSetNormals (unsigned int nPoints, va_list args)

virtual void	VaListSetTexCoords (unsigned int nPoints, va_list args)

void	ApplyTextureMinMagSettings ()
	Updates the state manager's texture minification and magnification filter based on this display's configuration.

void	ApplyTextureEnvModeSettings ()
	Updates the state manager's texture environment based on this object configuration.

bool	SetupTextureIsNeeded ()

virtual int	ColorMaterialMode ()

void	AllocateModelMatrix ()

bool	ApplyDynamicRotation ()

virtual void	CalcDrawMatrix ()

void	CalcDrawMatrixIfExists ()

virtual void	CalculateMatrices (const OpenGLMatrices &newMatrices)

bool	InsideVertexExtents (float x, float y, unsigned int nVerts, Vertex *verts, float tolerance)

void	LastDrawMatrixLocation (const Vertex &loc)

const Vertex &	LastDrawMatrixLocation ()

void	NeedCalculate (bool val)

void	PickSetup (float x, float y, float z, Vertex *vertices, unsigned int vertex_cnt, const Vector &directionVector)

void	PickCleanup (Vertex *vertices, unsigned int vertex_cnt)

virtual void	SetFromGloData (GlsGloFileAttribute &data)

virtual void	SetValue (int spec, va_list &args)

int	GetApplicableTextureIndex ()

int	GetApplicableTextureRepeat ()

Protected Member Functions inherited from WeakReferenceableMixin
	WeakReferenceableMixin ()

virtual	~WeakReferenceableMixin ()

Protected Attributes
bool	_needsRecalculate

GlsQuadListVC_3D	_quads
	Manages a VBO for drawing the tick marks.

Vector	_radii [2]

Vector	_radiiUnit [2]

float	_magnitude [2]

GlsAngularScaleDataArray	_scale

bool	_deconflictTicks

bool	_haloEnabled

float	_haloWidth

GlsColor	_haloColor

Protected Attributes inherited from GLPolygon
GlsVertexArray	_vertArray
	A vertex array that makes up this mesh. Each vertex contains data such as position, normal, texture coordinates, and color.

bool	_pendingFillColor
	If true and gouraudShading is true during a paint cycle, then it'll bake the VBO.

Protected Attributes inherited from DisplayObject
bool	_geometryRefresh
	Whether or not the geometry (VBOs etc.) needs to be updated on the GPU.

int	_alphaMode

bool	_antiAlias

bool	_attributesAdded

bool	_blinking

float	_blinkRate

bool	_isBlinkedOff
	Stores whether the object is presently blinked on or off.

GlsColor	_color

bool	_cullBackFace

GlsMatrixType	_dcsMatrix

unsigned char	_depthTest

GlsMatrixType *	_drawMatrix

bool	_needCalcDrawMatrix
	True if CalcDrawMatrix() needs to be called on this object.

unsigned char	_lineStippleMultiplier

unsigned short	_lineStipplePattern

float	_lineWidth

Vertex	_location

DynamicArray< int >	_materialIndices
	List of materials associated with this object.

GlsMatrixType *	_modelMatrix

Vector *	_normals

unsigned int	_nTex_vertices

unsigned int	_nVertices

unsigned char	_polygonEnd

unsigned char	_polygonMode

GlsMatrixType *	_projMatrix

unsigned char	_shading

Vector *	_texCoord

GlsColor	_textureBlendColor

int	_textureIndex

unsigned char	_textureMagFilter

unsigned char	_textureMinFilter

unsigned char	_textureMap

Vector	_texturePoints [4]

unsigned char	_textureRepeat

void *	_userData

Vertex *	_vertices

int *	_viewMatrix

bool	_visible

IGlsStateManager *	_stateManager
	The state manager that interfaces with OpenGL and maintains its render state.

Protected Attributes inherited from WeakReferenceableMixin
DynamicArray< WeakReference * > *	_weakRefs

Friends
class	GlsAngularScaleEditor

Detailed Description

Runtime implementation of a GlsAngularScale

Constructor & Destructor Documentation

◆ GlsAngularScale() [1/2]

GlsAngularScale ( bool generateInstance = false )

Create a new GlsAngularScale.

Parameters

generateInstance Whether or not to generate an instance name for this inputdevice

◆ GlsAngularScale() [2/2]

GlsAngularScale	(	const GlsAngularScale &	that,
		const bool	generateNames
	)

The copy constructor for GlsAngularScale

Parameters

that	The GlsAngularScale object that is being copied
generateNames	Whether or not to generate a new instance name

◆ ~GlsAngularScale()

virtual ~GlsAngularScale ( )

virtual

Destructs a GlsAngularScale object

Member Function Documentation

◆ CalculateRadiiUnit()

void CalculateRadiiUnit ( )

protected

Calculates _radiiUnit and _magnitude based on _radii

◆ CloneObject()

virtual DisplayObject * CloneObject ( bool generateNames = false )

virtual

Copy+Create operation in one method. In derived classes, this method will create a new instance of the derived class and then copy the object into the new instance. The cut,copy,paste and undo operations use this method.

Parameters

generateNames Whether or not to generate new names for cloned objects

Returns: A new object, identical to the original, except for the instance name

Reimplemented from GLPolygon.

◆ CopyGeometry()

virtual void CopyGeometry ( DisplayObject * src )

virtual

Copies the geometry information from one object to another. Used by the undo mechanism to allow user to undo a geometry change.

Parameters

src	The object to copy geometry from

Reimplemented from DisplayObject.

◆ CopyProperties()

virtual void CopyProperties ( DisplayObject * src )

virtual

Copies the attributes except for geometry attributes from one object to another. Used by the undo mechanism to undo most attribute change operations.

Parameters

src	The object to copy properties from

Reimplemented from DisplayObject.

◆ CreateInstance()

static DisplayObject * CreateInstance ( )

static

Returns: A pointer to a new GlsAngularScale object.

◆ DeconflictTicks() [1/2]

bool DeconflictTicks ( )

inline

Gets the tick deconfliction state for this scale

Returns: Whether or not tick deconfliction is enabled

◆ DeconflictTicks() [2/2]

void DeconflictTicks ( const bool & val )

Sets the tick deconfliction state for this scale

Parameters

val	Wether or not to enable tick deconfliction

◆ Draw()

virtual void Draw ( )

virtual

Draws this object on the current display frame (_parent member).

Reimplemented from GLPolygon.

◆ DrawScale()

void DrawScale	(	int	i,
		float	haloLength,
		float	haloThickness,
		GlsColor &	color
	)

protected

Calculates and draws a single scale using the given halo length and thickness

Parameters

i	The index of the scale to draw
haloLength	The length of the halo
haloThickness	The thickness of the halo
color	The color of the scale

◆ GetExtents()

virtual void GetExtents	(	float &	x,
		float &	y,
		float &	z,
		float &	x1,
		float &	y1,
		float &	z1
	)

virtual

Figure out the static extents for the object. Used by the editor as part of the pick operation and for figuring out the size of groups.

Parameters

x	Gets the minimum x extent
y	Gets the minimum y extent
z	Gets the minimum z extent
x1	Gets the maximum x extent
y1	Gets the maximum y extent
z1	Gets the maximum z extent

Reimplemented from DisplayObject.

◆ GetScale()

void GetScale	(	int	index,
		GlsAngularScaleData &	data
	)

Gets data for one of the scales

Parameters

index	Zero based index of the scale to get
data	The GlsAngularScaleData structure to fill

◆ GetTransformedExtents()

virtual void GetTransformedExtents	(	Vector &	min,
		Vector &	max,
		const GlsMatrixType &	matrix,
		bool	resetMinMax
	)

virtual

Determines the static extents of the geometry projected to the XY plane of an arbirary coordinate system.

Parameters

min	Returns the minimum values found in the traversal
max	Returns the maximum values found in the traversal
matrix	Transformation matrix from logical coordinates to the coordinate system to determine the extents in.
resetMinMax	Normally not specified by user. Should be true for the initial call.

Reimplemented from DisplayObject.

◆ HaloColor() [1/2]

GlsColor HaloColor ( )

inline

Gets the halo color for this scale

Returns: The halo color for this scale

◆ HaloColor() [2/2]

void HaloColor ( const GlsColor & val )

Sets the halo color for this scale

Parameters

val	New halo color

◆ HaloEnabled() [1/2]

bool HaloEnabled ( )

inline

Gets the halo state for this scale

Returns: Whether or not halo is enabled

◆ HaloEnabled() [2/2]

void HaloEnabled ( const bool & val )

Sets the halo state for this scale

Parameters

val	Wether or not to enable halo

◆ HaloWidth() [1/2]

float HaloWidth ( )

inline

Gets the halo width for this scale

Returns: The halo width for this scale

◆ HaloWidth() [2/2]

void HaloWidth ( const float & val )

Sets the halo width for this scale

Parameters

val	New halo width

◆ handle()

DisplayObject * handle ( DisplayEvent * ev )

virtual

Handles an event that is sent to the object.

Parameters

ev	The event to send to the object

Returns: Which object handled the event

Reimplemented from DisplayObject.

◆ Hit()

virtual bool Hit	(	float	x,
		float	y,
		float	z,
		float	scale,
		const Vector &	directionVector,
		Vector *	collisionPoint
	)

virtual

Determines if the object is hit by a pick ray starting at (x,y,z) and pointing towards directionVector in object logical coordinate system. If Pickable() == PICK_BEST it will return the closest point that was hit, otherwise it returns the first point that was hit. This method should not pick points behind the viewer.

Parameters

x	X coordinate of pick ray start in logical coordinates.
y	Y coordinate of pick ray start in logical coordinates.
z	Z coordinate of pick ray start in logical coordinates.
scale	The scale factor of the window. Affects picking of outlines. Standard value is 1.0.
directionVector	The direction of the pick ray.
collisionPoint	If this method returns true, this Vector will contain the location that was hit in logical coordinates.

Returns: boolean indicating if the object was hit by the pick ray.

Reimplemented from DisplayObject.

◆ InvalidateGeometry()

void InvalidateGeometry ( )

inline

Causes the VBO for this object to be recomputed

◆ MagnitudeChanged()

void MagnitudeChanged ( )

protected

Calculates _radii based on_magnitude and _radiiUnit

◆ PreDraw()

virtual void PreDraw	(	const OpenGLMatrices &	current,
		Culler &	culler
	)

virtual

Traverses the hierarchy calculating the _modelMatrix, _projMatrix, _viewMatrix as needed.

Parameters

current	Current matrices inherited from parent
culler	Object that possibly marks this object for culling

Reimplemented from GLPolygon.

◆ Radius() [1/2]

float Radius ( )

inline

Gets the radius for this scale

Returns: The radius for this scale

◆ Radius() [2/2]

void Radius ( const float & val )

Sets the radius for this scale

Parameters

val	New radius

◆ RecomputeVertices()

void RecomputeVertices ( )

protected

Recomputes the object's vertices from its radii

◆ Rotate()

virtual void Rotate	(	const Vector &	orig,
		float	angle,
		const Vector &	axis
	)

virtual

Rotates the object (around the specified axis) by the angle indicated, at the point specified. Recalculates the vertex data.

Parameters

orig	The point to rotate around
angle	The angle to rotate by, in degrees
axis	The arbitrary axis to rotate the object around

Reimplemented from DisplayObject.

◆ Scale()

virtual void Scale	(	float	px,
		float	py,
		float	pz,
		Vertex *	anchor,
		int	handleBar
	)

virtual

Scales the object, either the handleBar, or the Anchor is used to translate the object, not both. Anchor takes presidence, if it is set HandleBar is ignored. The footprint is different from the 2D scale so the compiler can destinguish the two.

Parameters

px	Value of the percentage of scale in x-axis
py	Value of the percentage of scale in y-axis
pz	Value of the percentage of scale in z-axis
anchor	Anchor from which to scale object relative to
handleBar	Vertex that is being dragged

Reimplemented from DisplayObject.

◆ SetAvailableAttributes()

virtual void SetAvailableAttributes ( unsigned int value )

virtual

Specifies which attributes are available for the object. Currently the available attributes cannot be changed after they have been set. (Only the first call has an effect.)

Parameters

value A bitfield specifying which types of attributes to make available.

See also: AvailableAttributesEnum

Reimplemented from DisplayObject.

◆ SetColor()

virtual void SetColor ( const GlsColor & color )

virtual

Sets the RGBA color for the object outline

Parameters

color The new color

Reimplemented from DisplayObject.

◆ SetFromGloData()

virtual void SetFromGloData ( GlsGloFileAttribute & data )

protectedvirtual

Set a single attribute from the GLO file.

Parameters

data	The attribute to set and its associated data.

Reimplemented from DisplayObject.

◆ SetLineColor()

void SetLineColor ( const GlsColor & color )

inline

An alias of SetColor, kept for backward compatibility.

Parameters

color The new color to set.

◆ SetScale()

void SetScale	(	int	index,
		const GlsAngularScaleData &	data
	)

Initializes data for one of the scales

Parameters

index	Zero based index of the scale to set
data	The data to set

◆ SetValue()

virtual void SetValue	(	int	spec,
		va_list &	args
	)

virtual

Sets an attribute of this object using variable arguments

Parameters

spec	A GLS_Initializer tag
args	A variable argument list

Reimplemented from DisplayObject.

◆ TickNeeded()

bool TickNeeded	(	int	currentLevel,
		float	currentAngle
	)

protected

Determines if a tick with the given angle should be drawn or not. If a higher priority scale already has a tick at that level and deconfliction is enabled, then this method will return false.

Parameters

currentLevel	The current tick type being considered for drawing.
currentAngle	The angle of the proposed tick.

Returns: True if the tick should be drawn.

◆ UpdateBoundingVolume()

virtual void UpdateBoundingVolume ( )

virtual

Updates the bounding volume of this object This method should be called if the vertices change for picking and culling to work correctly. This will only update this object. If PerformGroupCullCheck is enabled for one of the objects parents, you may also need to call CalculateParentBoundingBox() to update all of the objects parents.

Reimplemented from DisplayObject.

◆ Vertices()

virtual Vertex * Vertices ( )

virtual

Gets the object's vertices. You should call UpdateBoundingVolume after changing an object's extents.

See also: UpdateBoundingVolume

Returns: Pointer to the object's vertex array

Reimplemented from DisplayObject.

Member Data Documentation

◆ _deconflictTicks

bool _deconflictTicks

protected

True if duplicated tick marks are removed

◆ _haloColor

GlsColor _haloColor

protected

Color of the halo

◆ _haloEnabled

bool _haloEnabled

protected

True if haloing is enabled

◆ _haloWidth

float _haloWidth

protected

Width of the halo in logical units

◆ _magnitude

float _magnitude[2]

protected

Magnitudes of the two radii

◆ _needsRecalculate

bool _needsRecalculate

protected

True when the object's vertices need to be recalculated

◆ _radii

Vector _radii[2]

protected

Always equal to _radiiUnit * _magnitude

◆ _radiiUnit

Vector _radiiUnit[2]

protected

Unit vectors describing the radii

◆ _scale

GlsAngularScaleDataArray _scale

protected

The particulars of each scale

The documentation for this class was generated from the following file:

gls_angular_scale.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ GlsAngularScale() [1/2]

◆ GlsAngularScale() [2/2]

◆ ~GlsAngularScale()

Member Function Documentation

◆ CalculateRadiiUnit()

◆ CloneObject()

◆ CopyGeometry()

◆ CopyProperties()

◆ CreateInstance()

◆ DeconflictTicks() [1/2]

◆ DeconflictTicks() [2/2]

◆ Draw()

◆ DrawScale()

◆ GetExtents()

◆ GetScale()

◆ GetTransformedExtents()

◆ HaloColor() [1/2]

◆ HaloColor() [2/2]

◆ HaloEnabled() [1/2]

◆ HaloEnabled() [2/2]

◆ HaloWidth() [1/2]

◆ HaloWidth() [2/2]

◆ handle()

◆ Hit()

◆ InvalidateGeometry()

◆ MagnitudeChanged()

◆ PreDraw()

◆ Radius() [1/2]

◆ Radius() [2/2]

◆ RecomputeVertices()

◆ Rotate()

◆ Scale()

◆ SetAvailableAttributes()

◆ SetColor()

◆ SetFromGloData()

◆ SetLineColor()

◆ SetScale()

◆ SetValue()

◆ TickNeeded()

◆ UpdateBoundingVolume()

◆ Vertices()

Member Data Documentation

◆ _deconflictTicks

◆ _haloColor

◆ _haloEnabled

◆ _haloWidth

◆ _magnitude

◆ _needsRecalculate

◆ _radii

◆ _radiiUnit

◆ _scale
