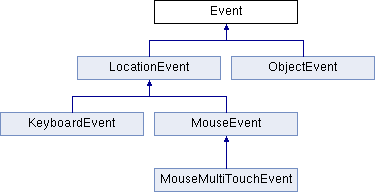

Inheritance diagram for RSOInterface1::Event:

Public Types
enum	EventTypeEnum { EVENT_MOUSE = 0 , EVENT_KEYBOARD , EVENT_TIMER , EVENT_OBJECT , EVENT_KEYBOARD_UP }

enum	EventSubtypeEnum { MOUSE_DOWN = 0 , MOUSE_UP , MOUSE_MOVE , MOUSE_DRAG , MOUSE_LEAVE , MOUSE_ENTER , MOUSE_WHEEL_MINUS , MOUSE_WHEEL_PLUS }

enum	SpecialKeyState { NONE_STATE = 0 , SHIFT_STATE = 0x00010000 , CAPS_LOCK_STATE = 0x00020000 , CTRL_STATE = 0x00040000 , ALT_STATE = 0x00080000 , NUM_LOCK_STATE = 0x00100000 , META_STATE = 0x00400000 , SCROLL_LOCK_STATE = 0x00800000 , BUTTON1_STATE = 0x01000000 , BUTTON2_STATE = 0x02000000 , BUTTON3_STATE = 0x04000000 }

Public Member Functions
unsigned short	EventType ()

void	EventType (unsigned short value)

unsigned short	EventSubType ()

void	EventSubType (unsigned short value)

Detailed Description

Base class for events

Member Enumeration Documentation

Event Subtype Enum

Enumerator
MOUSE_DOWN	A Mouse button was pushed down
MOUSE_UP	A Mouse button was released
MOUSE_MOVE	The mouse moved
MOUSE_DRAG	The mouse moved while a button was held down
MOUSE_LEAVE	The mouse exited the object
MOUSE_ENTER	The mouse entered the object
MOUSE_WHEEL_MINUS	The mouse wheel was turned in the negative direction
MOUSE_WHEEL_PLUS	The mouse wheel was turned in the positive direction

Event Type Enum

Enumerator
EVENT_MOUSE	A Mouse (or touch screen) event
EVENT_KEYBOARD	A Keyboard event
EVENT_TIMER	Unused
EVENT_OBJECT	An event emitted by an object
EVENT_KEYBOARD_UP	A Keyboard up event (uses KeyboardEvent class)

Special Key State

unsigned short _eventSubtype

Minor event code. see EventSubtypeEnum

unsigned short _eventType

Major event code. see EventTypeEnum

The documentation for this class was generated from the following file:
