GL Studio Safety Critical Embedded C++ Runtime Library
GlsRenderObject Class Referenceabstract

#include <gls_render_object.h>

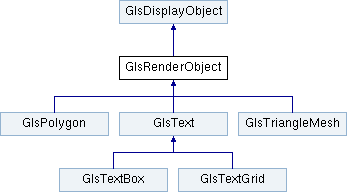

+ Inheritance diagram for GlsRenderObject:

Classes

struct  InitParameters


Public Member Functions

virtual void SetAlphaMode (const GlsAlphaMode alphaMode)

virtual void SetFillColor (const GlsColor &fillColor)

virtual void SetLineColor (const GlsColor &lineColor)

virtual void SetLineWidth (const GlsFloat32 lineWidth)

virtual void SetPolygonMode (const GlsPolygonMode polygonMode)

virtual void SetTextureIndex (const GlsUInt32 textureIndex)

virtual void OffsetTexture (const GlsVector2D &offset)=0

- Public Member Functions inherited from GlsDisplayObject
virtual void Draw (GlsStateManager &gl, const GlsFloat64 time)=0

virtual void Calculate (const GlsFloat64 time)

virtual GlsDisplayObjectPickTest (const GlsVector2D &windowCoord, GlsInputManager &inputManager, const GlsMatrixAffineD::GLMatrixAffineF &parentDrawMatrix)

GlsDisplayObjectHandleEvent (GlsEvent &event)

ObjectType GetObjectType (void) const

void SetBlinking (const GlsBool blinking)

void SetBlinkRate (const GlsFloat32 blinkRate)

void SetDynamicRotation (const GlsVector3D &dynamicRotation)

void SetDynamicScale (const GlsVector3D &dynamicScale)

void SetDynamicTranslation (const GlsVector3D &dynamicTranslation)

void SetVisibility (const GlsBool visible)

void SetParent (GlsDisplayObject *const parent)

void SetPickMode (const PickMode pickMode)

GlsBool NeedCalculate (void) const

void InvalidatePickCache (void)


Protected Member Functions

 GlsRenderObject (const InitParameters &initParameters, GlsEventDispatcher *const eventDispatcher)

GLint GlsTextureFilterModeToGL (const GlsTextureFilterMode mode) const

void SetupDepthTest (GlsStateManager &gl) const

void SetupAlpha (GlsStateManager &gl) const

GlsBool SetupTexture (GlsStateManager &gl, const GlsUInt32 textureIndex) const

void SetupTextureFilterSettings (GlsStateManager &gl) const

void SetupBackfaceCulling (GlsStateManager &gl) const

void SetupShading (GlsStateManager &gl) const

void SetupLineStyle (GlsStateManager &gl) const

void SetupAntiAlias (GlsStateManager &gl) const

virtual ~GlsRenderObject ()

- Protected Member Functions inherited from GlsDisplayObject
 GlsDisplayObject (const InitParameters &initParameters, const ObjectType objectType, GlsEventDispatcher *const eventDispatcher)

virtual ~GlsDisplayObject ()

GlsBool CalcDrawMatrix (const GlsMatrixAffineD *const additionalTransform, const GlsBool includeLocation)

virtual void CalcWindowPickRegion (GlsInputManager &inputManager, const GlsMatrixAffineD::GLMatrixAffineF &parentDrawMatrix)

GlsBool IsBlinkedOff (const GlsFloat64 time) const


Protected Attributes

const GlsBool _antiAlias

const GlsTexturePalette_texturePalette

const GlsBool _textureRepeat

const GlsTextureMapMode _textureMapMode

const GlsTextureFilterMode _textureMagFilterMode

const GlsTextureFilterMode _textureMinFilterMode

const GlsBool _cullBackFace

const GlsDepthBufferMode _depthBufferMode

const GlsPolygonEndMode _polygonEndMode

const GlsShadingMode _shadingMode

GlsAlphaMode _alphaMode

GlsColor _lineColor

GlsUInt32 _textureIndex

GlsPolygonMode _polygonMode

GlsColor _fillColor

GlsFloat32 _lineWidth

- Protected Attributes inherited from GlsDisplayObject
const GlsMatrixAffineD _dcsMatrix

const GlsMatrixAffineD _dcsMatrixInverse

const GlsBool _dcsMatrixIsIdentity

const GlsVector3D _location

const GlsBool _needCalculate

const ObjectType _objectType

const PickRegion _pickRegion

GlsEventDispatcher *const _eventDispatcher

const GlsVector3D _rotationPoint

GlsBool _blinking

GlsFloat32 _blinkRate

GlsMatrixAffineD::GLMatrixAffineF _drawMatrix

GlsVector3D _dynamicRotation

GlsVector3D _dynamicScale

GlsBool _dynamicScaleIsUnity

GlsVector3D _dynamicTranslation

GlsBool _needCalcDrawMatrix

GlsBool _visible

PickMode _pickMode

GlsBool _windowPickRegionValid

GlsVector2D _windowPickLowerLeft

GlsVector2D _windowPickUpperRight

GlsVector2D _windowPickUpperLeft

GlsVector2D _windowPickLowerRight

GlsMatrixAffineD::GLMatrixAffineF _pickMatrix

GlsDisplayObject_parent


Static Protected Attributes

static const GLclampf ALPHA_MODE_2_LEVEL_REF


Additional Inherited Members

- Public Types inherited from GlsDisplayObject
enum  ObjectType { OBJECT_TYPE_COMPOSITE, OBJECT_TYPE_RENDERABLE }

enum  PickMode { PICK_MODE_NEVER, PICK_MODE_FIRST, PICK_MODE_ALWAYS }


Detailed Description

Defines an abstract class for a display object that is directly rendered to OpenGL (not a composite of other objects) and maintains its own draw settings

Invariant
base class invariant holds, _texturePalette.Invariant(); GlsTextureMapModeIsValid( _textureMapMode ), GlsTextureFilterModeIsValid( _textureMagFilterMode ), GlsTextureFilterModeIsValid( _textureMinFilterMode ), GlsDepthBufferModeIsValid( _depthBufferMode ), GlsPolygonEndModeIsValid( _polygonEndMode ), GlsAlphaModeIsValid( _alphaMode ), _lineColor.IsValid(), ( GlsTexturePalette::NO_TEXTURE == _textureIndex ) || ( _textureIndex < _texturePalette.GetSize() ), GlsPolygonModeIsValid( _polygonMode ), GlsShadingModeIsValid( _shadingMode ), _fillColor.IsValid(), GlsLineWidthIsValid( _lineWidth )

Constructor & Destructor Documentation

GlsRenderObject::GlsRenderObject ( const InitParameters initParameters,
GlsEventDispatcher *const  eventDispatcher
)
protected

Construct with given initialization parameters

Parameters
initParametersinitialization parameters
eventDispatcherevent dispatcher for this object else GLS_NULL
Precondition
initParameters.IsValid()
Postcondition
object constructed
virtual GlsRenderObject::~GlsRenderObject ( )
protectedvirtual

Destructor - shall never be called

Precondition
none
Postcondition
none

Member Function Documentation

GLint GlsRenderObject::GlsTextureFilterModeToGL ( const GlsTextureFilterMode  mode) const
protected

Get the GL texture filter enum for the correspoding GlsTextureFilterMode

Parameters
modeGlsTextureFilterMode in question
Returns
GL texture filer enum for the given GlsTextureFilterMode
Precondition
GlsTextureFilterModeIsValid( mode )
Postcondition
none
virtual void GlsRenderObject::OffsetTexture ( const GlsVector2D offset)
pure virtual

Offset the texture on the object

Parameters
offsetx, y offset for texture
Precondition
offset.IsValid()
Postcondition
offset is added to the texture coordinates

Implemented in GlsText, GlsTriangleMesh, and GlsPolygon.

virtual void GlsRenderObject::SetAlphaMode ( const GlsAlphaMode  alphaMode)
virtual

Set the alpha mode

Parameters
alphaModedesired alpha mode
Precondition
GlsAlphaModeIsValid( alphaMode )
Postcondition
object has new alpha mode

Reimplemented in GlsText.

virtual void GlsRenderObject::SetFillColor ( const GlsColor fillColor)
virtual

Set the fill color

Parameters
fillColordesired fill color
Precondition
fillColor.IsValid()
Postcondition
object has new fill color

Reimplemented in GlsText.

virtual void GlsRenderObject::SetLineColor ( const GlsColor lineColor)
virtual

Set the line color

Parameters
lineColordesired line color
Precondition
lineColor.IsValid()
Postcondition
object has new line color

Reimplemented in GlsText.

virtual void GlsRenderObject::SetLineWidth ( const GlsFloat32  lineWidth)
virtual

Set the line width

Parameters
lineWidthnew line width, GlsRenderObject::LINE_WIDTH_MIN <= lineWidth <= GlsRenderObject::LINE_WIDTH_MAX
Precondition
GlsLineWidthIsValid( lineWidth )
Postcondition
object has new line width

Reimplemented in GlsText.

virtual void GlsRenderObject::SetPolygonMode ( const GlsPolygonMode  polygonMode)
virtual

Set the polygon mode

Parameters
polygonModenew polygon mode
Precondition
GlsPolygonModeIsValid( polygonMode )
Postcondition
object has new polygon mode

Reimplemented in GlsText.

virtual void GlsRenderObject::SetTextureIndex ( const GlsUInt32  textureIndex)
virtual

Set the desired texture index

Parameters
textureIndexdesired texture index into palette else GlsTexturePalette::NO_TEXTURE
Precondition
textureIndex is less than the size of the texture palette, else GlsTexturePalette::NO_TEXTURE, object's texture palette must have a valid texture (not an empty palette entry) at textureIndex if textureIndex != GlsTexturePalette::NO_TEXTURE
Postcondition
object has new texture index or is untextured if textureIndex == GlsTexturePalette::NO_TEXTURE

Reimplemented in GlsText, and GlsTriangleMesh.

void GlsRenderObject::SetupAlpha ( GlsStateManager gl) const
protected

Setup the GL alpha test and blend settings based on the current object settings

Parameters
glGL state manager to setup
Precondition
GlsAlphaModeIsValid( _alphaMode )
Postcondition
GL alpha test and blend settings are set based on current object settings
void GlsRenderObject::SetupAntiAlias ( GlsStateManager gl) const
protected

Setup GL with the proper antialias settings based on the current object settings

Parameters
glGL state manager to setup
Precondition
none
Postcondition
GL antialias settings are setup based on the current object settings
void GlsRenderObject::SetupBackfaceCulling ( GlsStateManager gl) const
protected

Setup GL with the proper backface culling mode based on the current object settings

Parameters
glGL state manager to setup
Precondition
none
Postcondition
GL backface culling mode is setup based on the current object settings
void GlsRenderObject::SetupDepthTest ( GlsStateManager gl) const
protected

Setup the GL depth settings based on current object settings

Parameters
glGL state manager to setup
Precondition
GlsDepthBufferModeIsValid( _depthBufferMode )
Postcondition
GL depth settings are set based on current object settings
void GlsRenderObject::SetupLineStyle ( GlsStateManager gl) const
protected

Setup GL with the proper line style settings based on the current object settings

Parameters
glGL state manager to setup
Precondition
GlsLineWidthIsValid( _lineWidth )
Postcondition
GL line style settings are setup based on the current object settings
void GlsRenderObject::SetupShading ( GlsStateManager gl) const
protected

Setup GL with the proper shading settings based on the current object settings

Parameters
glGL state manager to setup
Precondition
GlsShadingModeIsValid( _shadingMode )
Postcondition
GL shading settings are setup based on the current object settings
GlsBool GlsRenderObject::SetupTexture ( GlsStateManager gl,
const GlsUInt32  textureIndex
) const
protected

Setup GL with the proper texture binding and parameters as indicated by the current object settings and the given texture index

Parameters
glGL state manager to setup
textureIndexindex of texture to setup
Returns
GLS_TRUE if this object has a texture else GLS_FALSE
Precondition
( textureIndex == GlsTexturePalette::NO_TEXTURE ) else ( textureIndex < _texturePalette.GetSize() and _texturePalette does not have an empty slot at textureIndex ), GlsTextureMapModeIsValid( _textureMapMode ), GlsTextureFilterModeIsValid( _textureMagFilterMode ), GlsTextureFilterModeIsValid( _textureMinFilterMode ),
Postcondition
GL texture binding and parameters are setup as indicated by the current object settings
void GlsRenderObject::SetupTextureFilterSettings ( GlsStateManager gl) const
protected

Setup GL with the proper texture filter settings based on the current object settings.

Parameters
glGL state manager to setup
Precondition
GlsTextureFilterModeIsValid( _textureMagFilterMode ), GlsTextureFilterModeIsValid( _textureMinFilterMode )
Postcondition
GL texture filter settings are setup based on the current object settings

Member Data Documentation

GlsAlphaMode GlsRenderObject::_alphaMode
protected

alpha mode

const GlsBool GlsRenderObject::_antiAlias
protected

GLS_TRUE if antialiasing is enabled else GLS_FALSE

const GlsBool GlsRenderObject::_cullBackFace
protected

GLS_TRUE if backface culling is enabled else GLS_FALSE

const GlsDepthBufferMode GlsRenderObject::_depthBufferMode
protected

depth buffer test / write mode

GlsColor GlsRenderObject::_fillColor
protected

fill color

GlsColor GlsRenderObject::_lineColor
protected

line color

GlsFloat32 GlsRenderObject::_lineWidth
protected

line width in pixels, GlsRenderObject::LINE_WIDTH_MIN <= lineWidth <= GlsRenderObject::LINE_WIDTH_MAX

const GlsPolygonEndMode GlsRenderObject::_polygonEndMode
protected

Polygon close mode

GlsPolygonMode GlsRenderObject::_polygonMode
protected

polygon mode

const GlsShadingMode GlsRenderObject::_shadingMode
protected

shading mode

GlsUInt32 GlsRenderObject::_textureIndex
protected

texture index into palette else GlsTexturePalette::NO_TEXTURE

const GlsTextureFilterMode GlsRenderObject::_textureMagFilterMode
protected

texture magnification filter mode

const GlsTextureMapMode GlsRenderObject::_textureMapMode
protected

texture mapping mode

const GlsTextureFilterMode GlsRenderObject::_textureMinFilterMode
protected

texture minification filter mode

const GlsTexturePalette& GlsRenderObject::_texturePalette
protected

palette with textures available to object

const GlsBool GlsRenderObject::_textureRepeat
protected

GLS_TRUE to enable texture repeat else GLS_FALSE for texture clamp

const GLclampf GlsRenderObject::ALPHA_MODE_2_LEVEL_REF
staticprotected

alpha function reference value when in 2 level alpha mode
